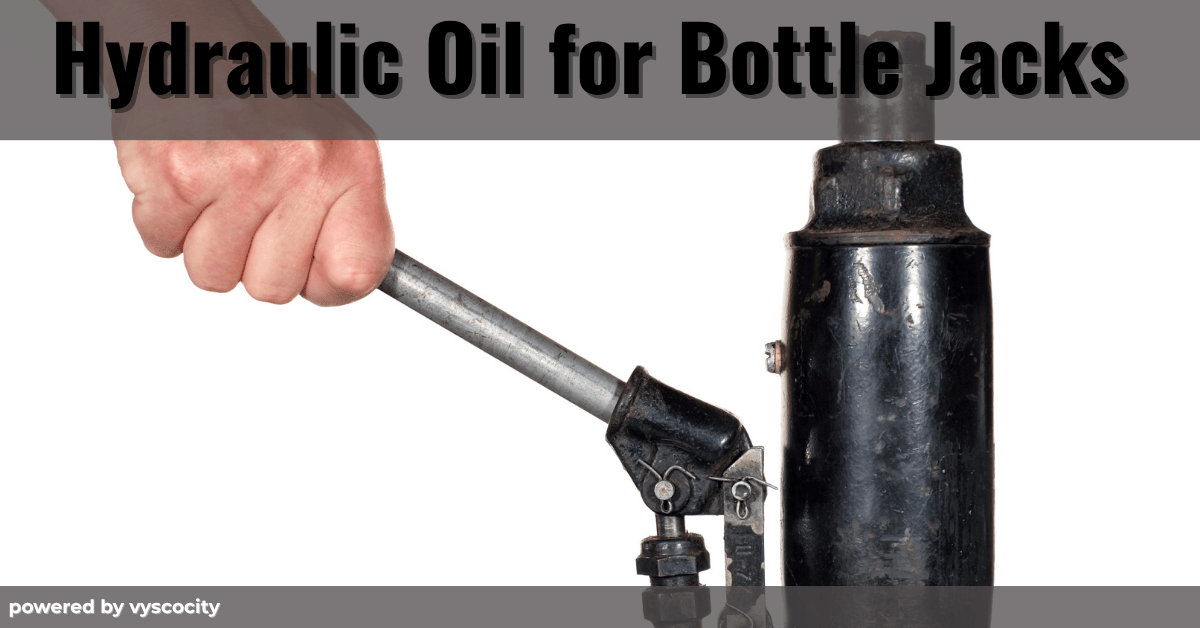

Jack Oil for Bottle Jacks | Use ISO 32, Not Motor Oil
ISO 32 hydraulic oil is the correct fluid for most bottle and floor jacks. Motor oil damages seals. ATF is a short-term stopgap at best. Here is exactly what to use, why it matters, and how to refill properly.
Red Seal 310T Truck & Coach Technician — AMSOIL Dealer Since 2006 — Veteran-OwnedMost bottle jacks and floor jacks take ISO 32 hydraulic oil. It is thin enough for fast cold-weather operation and provides the correct film strength for portable jack seals and rams. Motor oil, ATF, and brake fluid are not substitutes — they damage internal seals and degrade performance over time. Always verify with your owner's manual before adding fluid.
Why the Fluid Choice Matters in a Hydraulic Jack
A bottle jack does not use fluid for lubrication the way an engine does. The fluid is the mechanism — it transmits force from the pump piston to the ram.
What Goes Wrong With the Wrong Fluid
- Seal swelling or cracking from incompatible chemistry
- Foaming, which compresses — reducing lift pressure
- Jerky or slow ram movement from viscosity mismatch
- Internal rust from poor corrosion inhibition
- Jack will not hold load at full extension
What ISO 32 Delivers
- Correct film strength for portable jack seals
- Resists foaming under pump pressure
- Flows reliably in cold, unheated shop conditions
- Compatible with the rubber seals used in most jacks
- Anti-rust and anti-wear additives built in
Most portable jack failures that are not mechanical trace back to one of three fluid problems: wrong viscosity, contamination, or the wrong fluid type entirely. ISO 32 is the standard because it was specified for this class of equipment. Using something else is not neutral — it actively degrades the system.
Which Hydraulic Fluid Goes in a Jack?
Not all hydraulic fluids are interchangeable. The ISO viscosity grade is matched to the operating clearances and seal materials in the jack.
| Fluid | Use Case | Cold Weather | Seal Safe | Verdict |
|---|---|---|---|---|
| ISO 32 Hydraulic Oil | Most bottle jacks, floor jacks, light hydraulics | Best | Yes | Correct choice |
| ISO 46 Hydraulic Oil | Warmer climates, heavier-duty jacks, shop lifts | Thicker | Yes | Check your manual |
| ATF (Dexron/Mercon) | Emergency top-up only | Acceptable | Short-term | Flush ASAP |
| Motor Oil (5W-30 etc.) | Never | Poor | No | Do not use |
| Brake Fluid | Never | — | No | Do not use |
ISO 32 is the default for portable jacks in most shop environments, particularly in cooler climates or unheated spaces. ISO 46 holds up better under sustained heat and load. For a direct technical comparison of both grades, see the full breakdown: ISO 32 vs ISO 46 Hydraulic Oil
Why Motor Oil Ruins Hydraulic Jacks
Motor oil gets recommended online constantly. It is a mistake. Here is the technical reason it does not work.
Viscosity Mismatch
A 5W-30 motor oil at operating temperature is not equivalent to ISO 32. The viscosity-temperature relationship is engineered differently. Inside a jack's tight pump tolerances, motor oil does not provide the correct film thickness — it either leaks past seals or resists flow enough to starve the system.
Seal Incompatibility
Hydraulic jack seals are designed around hydraulic fluid chemistry. Motor oil additive packages — detergents, dispersants, friction modifiers — are not formulated for contact with those seal materials. Over time, the seals swell, distort, or degrade. Once that happens, the jack either leaks externally or loses internal pressure and will not hold a load.
Foaming
Motor oil foams more readily under the reciprocating pump action inside a jack. Foam compresses. A hydraulic system filled with foamy fluid loses lifting force because it is pumping compressible air instead of incompressible fluid. The jack feels weak, spongy, or refuses to lift to full height.
The ATF Exception
ATF is hydraulic fluid — it was designed for transmission hydraulics. In an emergency, it will get you through a lift. But ATF friction modifiers and seal swell agents are tuned for transmission seals, not jack seals. Use it once if you have no other option, then flush and replace with ISO 32 before the next use.
What This Looks Like in a Real Shop
In over 28 years of working on vehicles and equipment, the most common cause of jack failure in a shop is not mechanical wear — it is deferred maintenance on a tool that most people assume is maintenance-free. A bottle jack gets used hard, stored dirty, and refilled with whatever is on the shelf. The seals are not expensive. Replacing them is not difficult. But once someone has been running motor oil through a jack for two seasons, the seal damage is often past the point of a simple fluid swap. The correct fluid from the start costs less than a single set of replacement seals.
How to Refill a Bottle Jack with Hydraulic Oil
The one area where most people go wrong is overfilling — which causes the ram to extend past its travel limit and blow the top seal. Fill to the port, not past it.
- Lower the jack completely. The ram must be fully retracted before adding fluid. Any extension means the internal volume is already partially displaced — you cannot get an accurate fill level with the ram extended.
- Set it upright on a level surface. Tilting during fill gives a false reading and can introduce air into the system.
- Locate the fill plug. On most bottle jacks it is a slotted plug or Allen-head screw on the side of the cylinder body, near the base. Remove it carefully — do not strip it.
- Add ISO 32 hydraulic oil slowly until fluid just reaches the bottom edge of the fill port. A small squeeze bottle with a flexible nozzle gives the control needed to avoid overfilling.
- Replace the fill plug. Snug it firm — not torqued — then wipe away any fluid on the exterior.
- Cycle the jack. Pump the handle 10 to 15 times with no load to purge any air. Lower it fully, then test a light lift to confirm smooth operation before putting weight on it.
Common Hydraulic Jack Problems and What Causes Them
Jack Will Not Lift
Low fluid is the first check. If the level is correct, the issue is likely air in the system. Fully lower the jack, cycle the handle 15 times unloaded, and retest.
Lifts Then Slowly Sinks
Internal bypass — the check valve or ram seal is allowing fluid to pass back under load. Drain and replace the fluid first. If the problem continues, the jack needs a seal kit.
Jerky or Inconsistent Motion
Contaminated or degraded fluid. Drain completely, flush with fresh ISO 32, refill, and cycle. If the jack was run on motor oil or ATF for an extended period, the seals may already be damaged.
Fluid Leaking Externally
Wiper seal or base seal failure. A seal kit is required. Running a leaking jack is a safety risk — the load capacity is no longer predictable.
Jack Feels Spongy
Air in the system. Caused by overfilling, running low on fluid, or contaminated fluid that foams. Bleed the system by cycling with no load.
Will Not Release / Lower
Release valve is not seating properly, or the release needle is stuck. Mechanical issue — but degraded fluid accelerates the wear that causes it.
Best Hydraulic Oil for Bottle Jacks
AMSOIL Synthetic Hydraulic Oil ISO 32 is the top pick for portable jacks used in shop or field conditions. It is fully synthetic, resists foaming, carries anti-rust and anti-wear additives, and maintains stable viscosity across a wide temperature range — including cold shop starts.
One note on packaging: AMSOIL ISO 32 and ISO 46 hydraulic oils are currently available in 5-gallon pails. For shops with multiple jacks, air-over-hydraulic lifts, log splitters, or other hydraulic equipment all running the same grade, a pail makes practical sense. If you're out of ISO 32 and need to top off right now, see our breakdown of hydraulic jack oil substitutes for what's safe to use temporarily and what to avoid.
Shop AMSOIL Hydraulic Oil
ISO 32 and ISO 46 available for delivery across the USA and Canada. Ordered through an authorized AMSOIL dealer — no retail markup.
Hydraulic Jack OIL Fluid — Common Questions
Straight answers to the questions that actually get asked about jack oil and hydraulic fluid.
No. Motor oil is not hydraulic fluid. The additive chemistry is incompatible with jack seals and the viscosity profile is wrong for portable jack pump clearances. Using motor oil causes seal swelling, foaming, and eventually internal leakage. Use ISO 32 hydraulic oil.
Only as a one-time emergency measure. ATF is hydraulic in origin but formulated for transmission seals and friction characteristics. Over repeated use it degrades portable jack seals. Flush and replace with ISO 32 at the first opportunity.
ISO 32 is thinner and flows faster — better for cold environments and most portable jacks. ISO 46 is thicker and more stable in sustained heat. For the majority of bottle and floor jacks in a general shop or home garage, ISO 32 is the correct grade. Always verify with your equipment documentation.
Most bottle jacks hold between 4 and 12 ounces depending on capacity and cylinder size. Fill to the bottom edge of the fill port with the ram fully retracted — do not overfill. Overfilling can cause the ram to over-extend and blow the top wiper seal.
No. A leaking jack has a failed seal. Topping up replaces the fluid that has leaked but does not address the failure. A jack with a compromised seal cannot be trusted to hold a rated load. Replace the seal kit before returning the jack to service.
They are miscible — mixing them will not cause a chemical reaction. But mixing grades produces a blend that does not conform to either specification. If the system was designed for ISO 32, use ISO 32. Drain before switching grades.
Check the level annually and top off if needed. Do a full fluid replacement any time the fluid appears dark, milky, or contaminated, or if the jack has been out of service for over a year. There is no mileage-based interval — it is condition-driven maintenance.
Bottom Line: ISO 32 hydraulic oil is the standard for most bottle jacks and floor jacks. It is not interchangeable with motor oil, ATF, or brake fluid — each damages seals in ways that compound over time. A proper fill costs a fraction of a seal kit, and a seal kit costs a fraction of a new jack.
Keep the fluid clean, change it when it looks contaminated, and do not overfill. A properly maintained hydraulic jack will outlast the vehicles it services.
